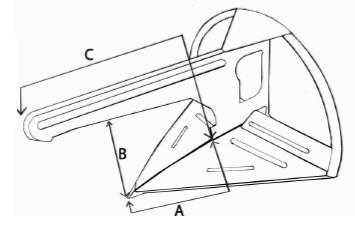

For A, B and C measurements, please refer to image below
Product Specifications
Please note that this chart is a guide only. We recommend that you evaluate the variables listed below and choose the most suitable products for your vessel.
Available in Galvanised and Stainless Steel Anchors
Boat Length (m):12.0 - 14.0
Boat Weight (tons):11-16 T
Guide to min length of leader chain:13m of 12mm
Weight(kg):25.0kg
Width (mm):565
Height (mm):390
Length (mm):835
A (mm):300
B (mm):260
C (mm):560
